זוג ממירים מרחיק HDMI על גבי הרשת לטווח עד 60 מטר

רק 699
במקום 789
יח'
IMG_1843_900x900IMG_1825_900x900IMG_1826_900x900

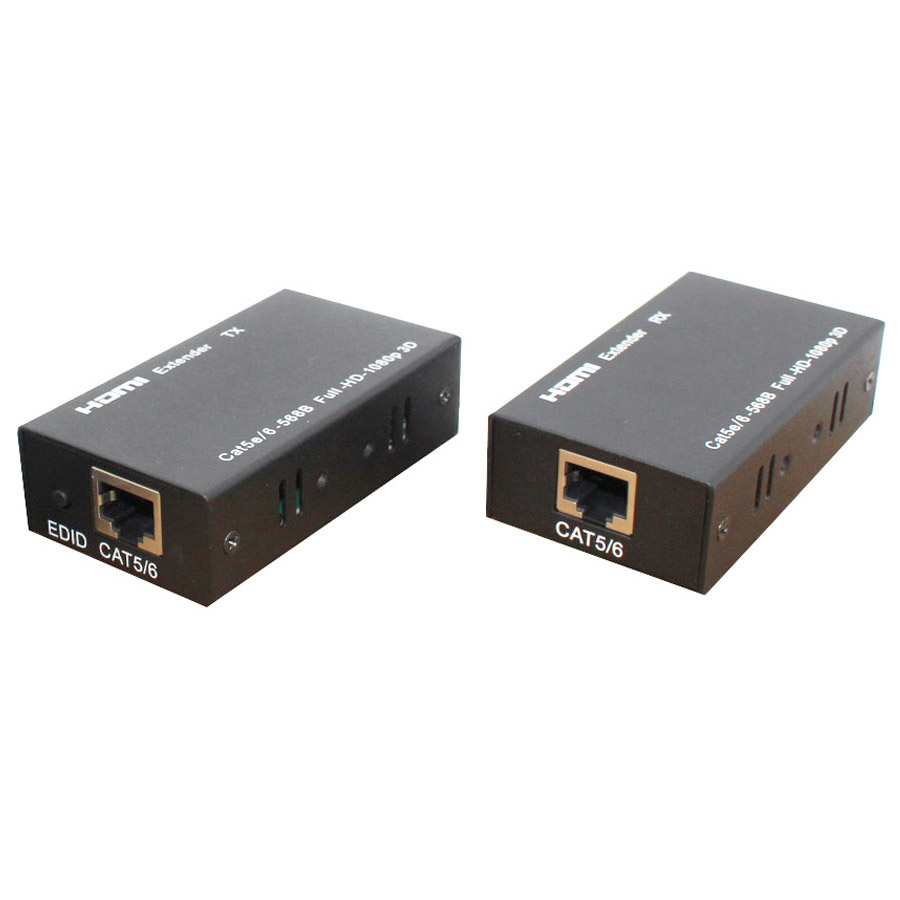

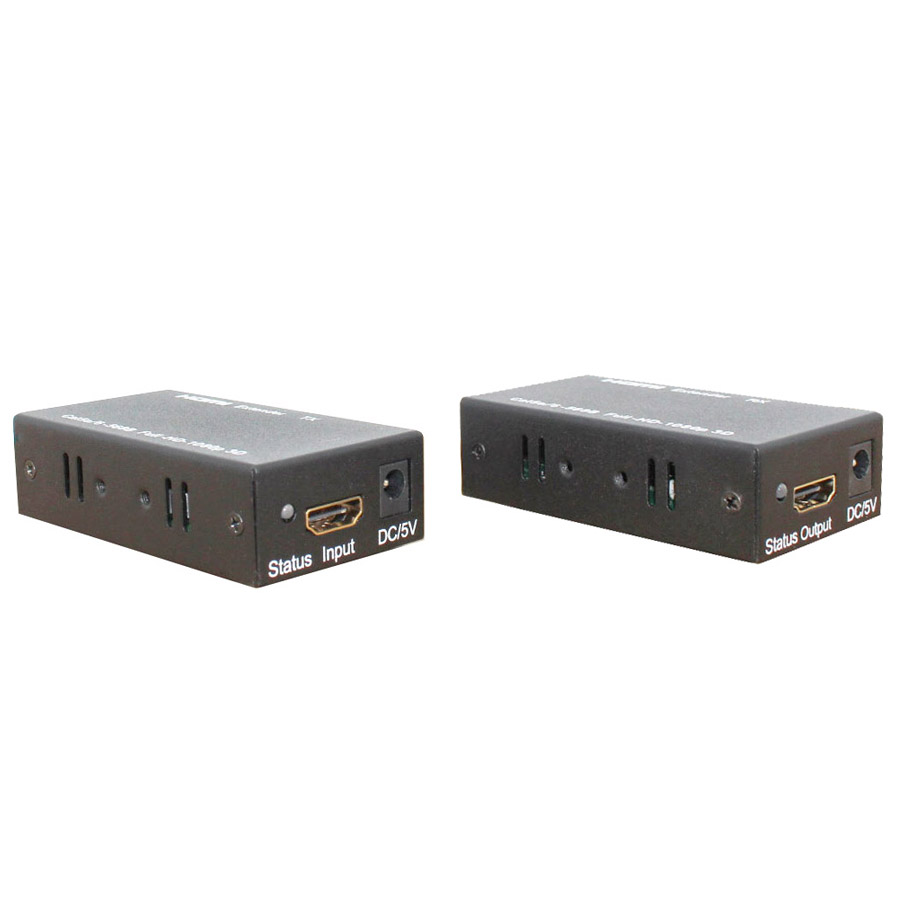

HDMI Extender up To 60m



HDMI Extender, 1080P, 3D, up To 60m

מק"ט- P/N: HDMI-EX-60.

תיאור מוצר

Features:

The HDMI Extender use cat-6(recommended) cables up to 60 metres instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.


hdmi extender cat-5e/6 extender transmitter unit sits close to your source,the receiver unit sits close to your HDTV display.run a single cat-5e or cat-6 cable between the transmitter and receiver.when the source,the receiver and the display are all powered on and connected ,the auto-adjusting extender requires no manual turning or settings.

Specification:
Length of. CAT-6 cable between Rx and TX…..…………………..Up to 60 metres
HDMI Input…..……………………………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input..………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output…..…………….……………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output……….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max transmission bandwidth…….………………….……………………………………5.1Gbps
Input Video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p
Output DDC signal ……………………………………………………………… 5Volts p-p (TTL)
Input/Output HDMI1.3 cable distance………….……≤5m AWG26 HDMI 1.3 standard cable
Max working current…………………………………………………………………………600mA
Power adapter format………………Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….………………………………… (-15 to 55°C)
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….………………………82x45x21 (mm)
Weight…..………………………………………………………..…….………………………510g

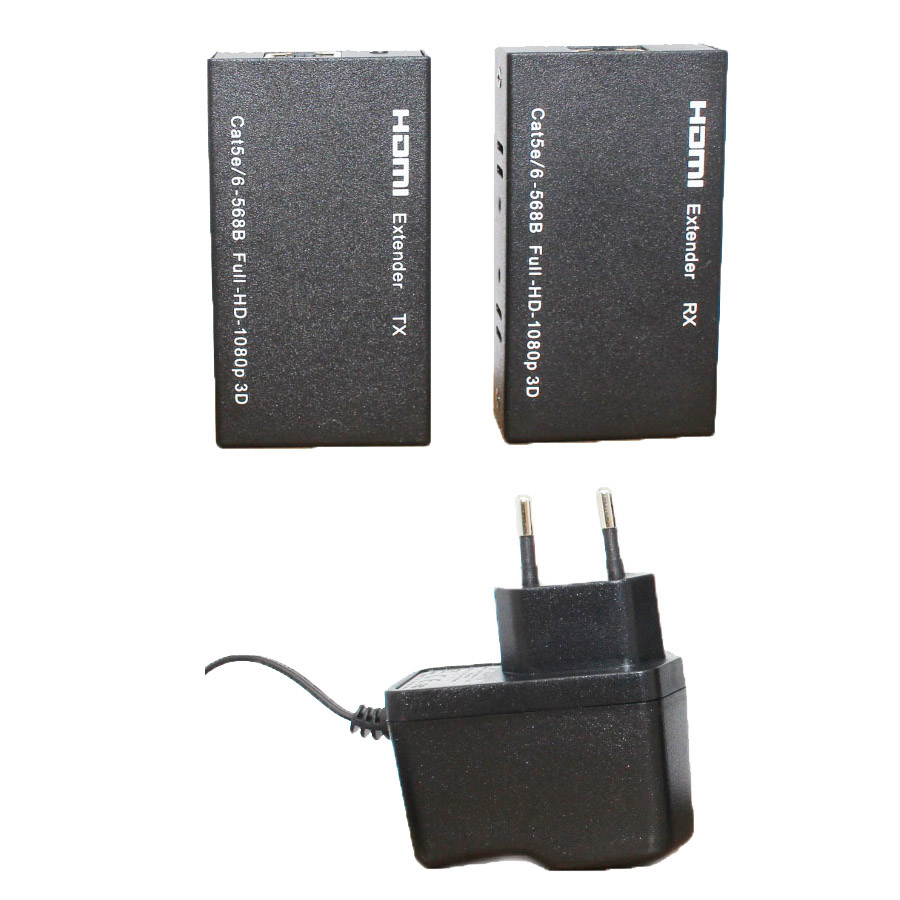

package content:

1)  Main unit No. 1 Sender , Main unit No. 2 Receiver

2)  Two pieces of 5V DC Power Supply.

3)  User’s Manual
