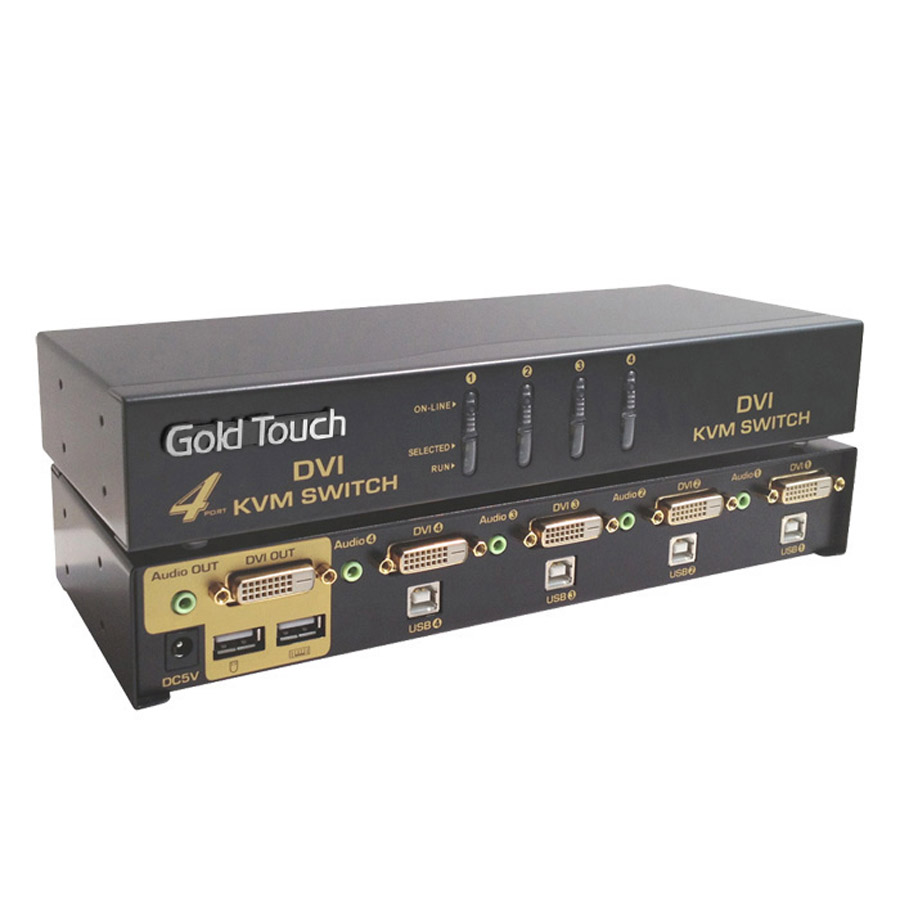

4Port DVI KVM Switch
4Ports DVI KVM Switch Without Cables
P/N: KVM-DVI-4
תיאור מוצר
Description:
The DVI KVM Switch withbuilt-in sound effect function. It is specially designed for users of PC andMac with built-in DVI interfaces and loyal fans of SOHOenvironment and technology, which is well-suited for DVI. This unique type of KVM switch can easily control two computers, which have built-in DVIinterfaces, via a DVI display and either a PC or Mac keyboard and mouse. Imagedistortion due to conversion of analog and digital signals will not be aproblem anymore.
Features:

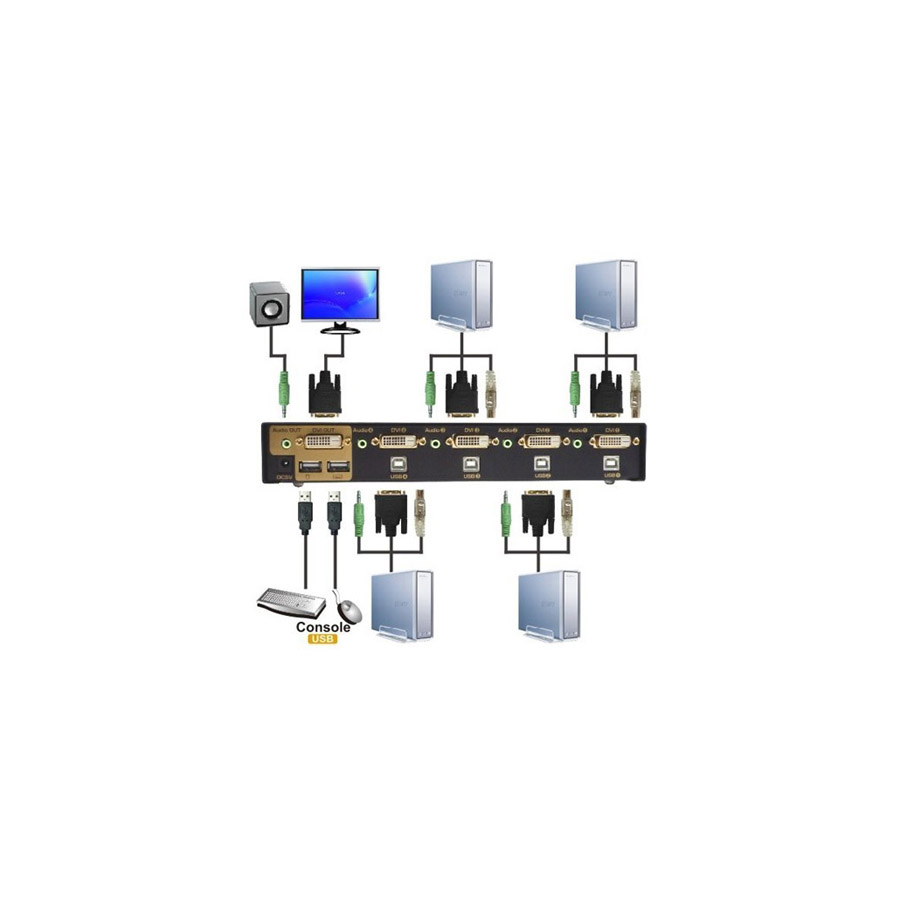

- One USB console controls 4 DVI computers
- Fully compliant with the DVI-Digital and DVI-Analog specification
- DVI interface technology to ensure crisp and clean digital display
- Switch Mode: a. button push b. Keyboard Hot-Key switch c. Mouse switch(need install software)
- Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
- With audio enabled
- Computer selection via front panel pushbuttons and hotkeys
- Superior video quality – up to 1920 x 1200; DDC2B
- HDCP compliant
Specifications:
Computer Connections |
4 |
Port Selection |
Hotkey, Pushbutton |
Connectors |
Console Ports |
Keyboard |
1 x USB Type A Female |
Video |
1 x DVI Female (White) |
Mouse |
1 x USB Type A Female |
Speaker |
1 x Mini Stereo Jack Female (Green) |
KVM Ports |
Video |
4 DVI Female |
Keyboard / Mouse |
4 USB Type B Female |
Speaker |
4 Mini Stereo Jack Female |
Power |
1 x DC Jack |
Switches |
Port |
4 Pushbutton |
LEDs |
On Line / Selected |
4 (Orange) |
Emulation |
Keyboard/Mouse |
USB |
Video |
1920 x 1200 ; DDC2B |
Scan Interval |
10 seconds |
Power Consumption |
DC5V, 5.1W |
Environment |
Operating Temp. |
0~50°C |
Storage Temp. |
-20~60°C |
Humidity |
0~80% RH, Non-condensing |
Physical Properties |
Housing |
Metal
|
